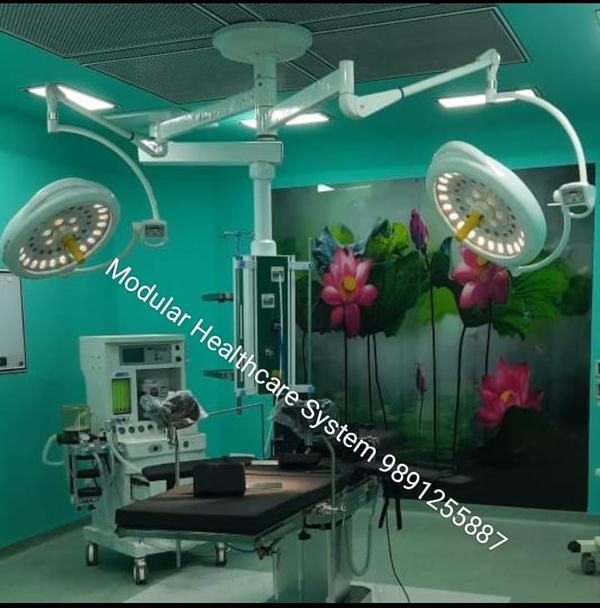

We are a unique entity in this industry, actively engaged in offering a premium quality array of PPGI Modular Operation Theater. Other Details: 1.6 mm thick EGP panels, backed by 12mm thick gypsum Laminated panels under high pressure as per EN standard for best and durable results PUF sandwich panel Features that make us stand out from other modular ot manufacturers: Fewer cavities between the walls to reduce the obstruction Addition of equipment at a later date, to enable pipes, conduits, services Any other assistance after installation of the walls for proper functioning

Two Color Double dome LED Light Luminance :160000 + 160000 Lux , EVA Series come with ultra slim streamlined lamp head, shadow compensation , handheldwireless remotecontroller, smooth light focus adjustment, mutual control for both lamp head, foe ultra comfortof healthcare experts. Techical Data :- Intensity - 1,60,000 x 2 Lux, Spot Diameter - 100 - 150 mm, Depth Diameter - 10-25 Cm, Colour Temp- 3800 - 4800k, Colour Rendering Index - 93Ra, Led Average Life > 50000 Hrs. , Number of LED - 48x2, Diameter of Light 555mm, Intensity Control 10-100 Digital, Power Supply - 220V/ 50Hz AC, Power Consumption - 38.4+ 38.4 watt, Special Function - Dual Memory Function,

Manual Sealed Hinged Door size (Width 1500 mm X Height 2100 mm ) Double leaf in HPL on both side & PUF / Honeycomb material will be filled between two sheets as per site opening) complete with double toughned glass vision window of 300mm x 300mm, SS door hinges SS Handle, Door Closer, Door lock , sealing gaskett & Automatic drop seal in bottom of door with required accessories. Door frame will be Aluminum duly Anodizing with sealing gasket. 40 ± 2 Puff Density with View Panel and Below mentioned Accessories, Make - MHS ( Modular Healthcare System)

Standard - Automatic Surgical Scrub Sink 2 - Bay Made out of 1.5 mm thick SS 304 stainless Steel seamless welding, polished to stain finish complete with thermostatic mixing valve for Hot & Cold water, Strainers, Jaquar Spouts, Soap Stand, Touchless Senser & Foot operated Spout bypass system etc. The sink body is constructed of made of SS #304, ( 1500mm L x 1365mm H x 565mm D)

Manual operated Hermettically sealed Sliding door with High Pressure Laminate on both side, Door size (1500mm wide 2100mm height) complete with double toughned glass vision window of 300mm x 300mm and smooth effortless sliding door runs on nylon wheel within an aluminum extrusion high quality rail complete with required accessories. The door track is constructed from an aluminium extrusion, fixed firmly to the wall. Nylon runner guides are fixed to the floor in such a way that they do not obstruct trolley movement through the door. The doorframes consist of reinforced plasterboard panels faced with the same laminate as the door and will be edged with an aluminium extrusion and with concealed fixings that are adjustable during installation to ensure a 100% hermetic seal is achieved.

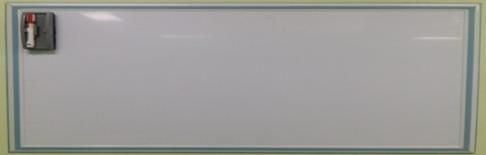

Magnetic Writing Board of size 940 x 640 x 50 mm comprises of a flush mounted, 1.50 mm thick, white laminate board, bonded to a 10 mm high density fibreboard sheet for additional rigidity. Writing board will be supplied with Duster & white board pens 2 Nos.

Automatic Sliding Door : MHS Make Automatic operated Hermettically sealed Sliding door with High Pressure Laminate on both side, Door size (1500mm wide 2100mm height) complete with double toughned glass vision window of 300mm x 300mm and smooth effortless sliding door runs on nylon wheel within an aluminum extrusion high quality rail complete with required accessories. The door track is constructed from an aluminium extrusion, fixed firmly to the wall. Nylon runner guides are fixed to the floor in such a way that they do not obstruct trolley movement through the door. The doorframes consist of reinforced plasterboard panels faced with the same laminate as the door and will be edged with an aluminium extrusion and with concealed fixings that are adjustable during installation to ensure a 100% hermetic seal is achieved.Microcontroller based door automation unit complete with motor, touchless hand sensor 2nos, foot switch 2nos, safety beam sensor.

The wall and ceiling panels can be made out of following material as per customer requirement. 1 . S t a i n l e s s S t e e l P a n e l s b a c k e d b y G y p s u m : 1 . 6 m m t h i c k S t a i n l e s s s t e e l s h e e t p a n e l s b a c k e d b y 9 m m / 1 2 m m t h i c k G y p s u m b o a r d . 2 . P U F I n ‐ f i l l e d S t a i n l e s s S t e e l P a n e l s : H i g h d e n s i t y P U F i n ‐ f i l l e d b e t w e e n t w o s h e e t s o f S t a i n l e s s s t e e l s h e e t . 3 . G a l v a n i z e d S t e e l P a n e l s b a c k e d b y G y p s u m : 1 . 6 m m t h i c k g a l v a n i z e d s t e e l s h e e t b a c k e d b y 9 m m / 1 2 m m t h i c k G y p s u m b o a r d . 4 . P U F I n ‐ f i l l e d G I / P P G I P a n e l s : H i g h d e n s i t y P U F i n ‐ f i l l e d b e t w e e n t w o s h e e t o f G I / P P G I s h e e t . Creative 5. P U F I n ‐ f i l l e d H i g h P r e s s u r e L a m i n a t e P a n e l s : H i g h d e n s i t y P U F i n ‐ f i l l e d b e t w e e n t w o s h e e t o f H i g h P r e s s u r e L a m i n a t e s h e e t w i t h t h i c k n e s s 3 m m / 4 m m . 6 . S o l i d H i g h P r e s s u r e L a m i n a t e P a n e l : 1 2 m m t h i c k s o l i d h i g h p r e s s u r e m o u n t e d w i t h s t e e l s t r u c t u r e . 7 . S o l i d M i n e r a l S u r f a c e ( S M S ) t h i c k n e s s f r o m 4 m m t o 1 8 m m . 8 . A l u m i n i u m E x t r u d e d T r u e M o d u l a r P P G I / S S / H P L / G l a s s P a n e l – P U F I n f i l l e d w i t h A l u m i n i u m E x t r u d e d P r o f i l e . I t i s v e r y e a s y t o a s s e m b l e , e a s y t o r e ‐ a s s e m b l e , t r u l y M o d u l a r w i t h A l u m i n i u m e x t r u d e d j o i n t i n g s e c t i o n , A l u m i n i u m e x t r u d e d C e i l i n g j o i n t i n g s e c t i o n , H e a v y d u t y a l u m i n i u m c o v i n g w i t h i n t e r n a l & E x t e r n a l C o r n e r s .
