X-RAY VIEWING SCREEN: - Two Plate X-Ray View Screen with flicker free illumination having imported LED system for uniform illumination and operated by switches mounted on front screen of Viewer. The system having electrical safety codes for high & Low voltage system.

MHS - Recess mounted sealed IP54 Protocol, non-hygroscopic peripheral lights ( 1' x 2' ) having compact high glow low wattage LED lighting system. These lights are having electrical safety code for high & low voltages.

CEILING PANELS: Pre Fabricated Modular Ceiling Panels in 40 mm thick, PUF Panels, between one sheets of 0.8mm & One Sheet 0.5 mm PPGI ( Pre Painted Galvanized Steel) having PUF density of 40kg/m3 with proper supports. . Ceiling Panels will be supported with wall panels thru L type Flashing, CAM lock system and ceiling support system as required. (PPGI Sheet Make Tata steel / Bhushan / Jindal / National). Panels including cutouts for Lights, Pendants, electrical switch sockets etc.

Medical Gases used in healthcare sectors are actually a life support element. These gases are so helpful in saving the life of patients in critical condition by maintaining the direct influence. The Medical Gas Pipeline System is used to give a route and regulate the medical gases. These pipelines are not like any ordinary pipelines, as these are really very special as their work is special. After spending years in the healthcare sector as a medical gas pipeline system manufacturer, we understand the value of hygiene and purity. The gas pipeline system we offer that provides an uninterrupted and stable medical gas supply with a higher level of purity. Our medical gas pipeline system follows all the terms, regulations and standards, which are required a company in this sector to follow. The color coordination reflects the type or kind of the gas. We also provide A-V (audio-visual) monitoring system, with a great capacity to monitor the running situation. We offer another device along with this medical gas pipeline system to prevent cross connection. Our systems are highly designed to serve safety along with security. Our medical gas pipeline systems are available at best market prices. We are leading healthcare systems manufacturers and supplier. This is the quality of our products, unbeatable prices and quick customer support that makes us the leading supplier of medical gas pipeline system in India.

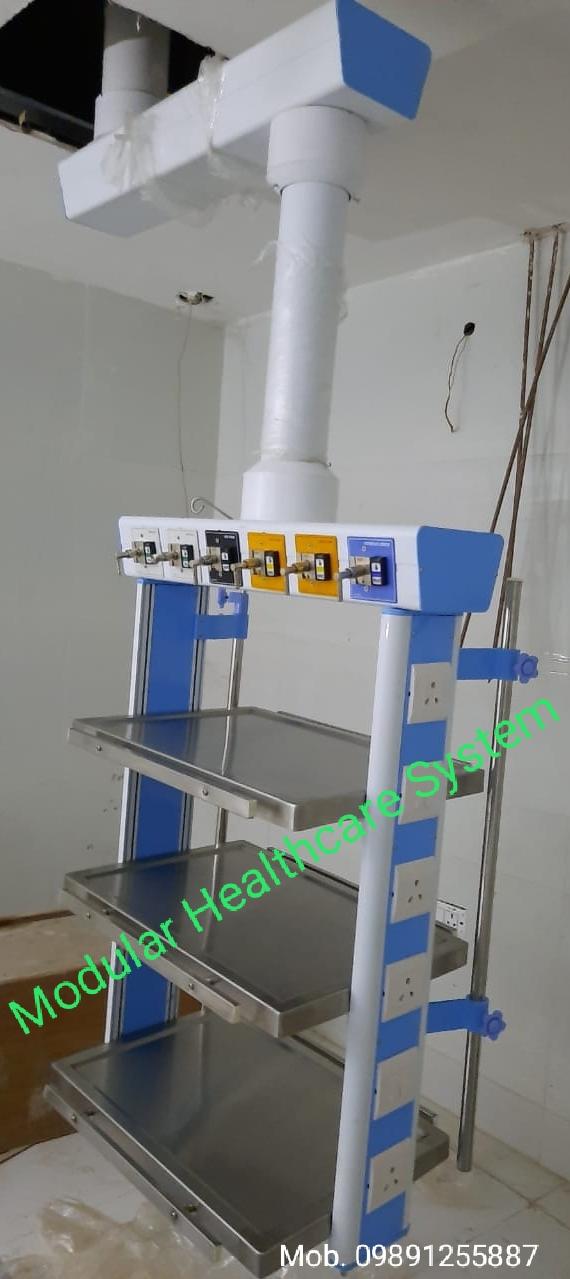

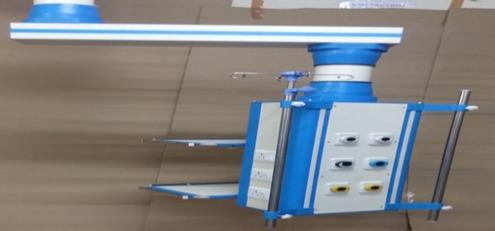

Swivel type Single arm- 900mm long arm, pendent in heavy duty aluminium extrusion profile having weight carrying capacity of more than 250Kg, Horizontal movement upto 360 degree, Console in aluminium extrusion profile duly powder coated,IV Pole, Infusion Pump Pole, Eight(08) modular electrical switched sockets 6/16 ampere, Three equipment shelf and cutout provision for gas outlets (2 for Oxygen, 2 for Vacuum, 1 for Nitrous Oxide, 1 for Air4 Bar ), RJ11 socket, RJ45 socket.

Swivel type Single arm- 900mm long arm, pendent in heavy duty aluminium extrusion profile having weight carrying capacity of more than 200Kg, Horizontal movement upto 360 degree, Console in aluminium extrusion profile duly powder coated,IV Pole, Infusion Pump Pole, Eight(08) modular electrical switched sockets 6/16 ampere, TWO equipment shelf and cutout provision for gas outlets (2 for Oxygen, 2 for Vacuum, 1 for Nitrous Oxide, 1 for Air4 Bar ), RJ11 socket, RJ45 socket.

Automatic Sliding Door : MHS Make Automatic operated Hermettically sealed Sliding door with High Pressure Laminate on both side, Door size (1500mm wide 2100mm height) complete with double toughned glass vision window of 300mm x 300mm and smooth effortless sliding door runs on nylon wheel within an aluminum extrusion high quality rail complete with required accessories. The door track is constructed from an aluminium extrusion, fixed firmly to the wall. Nylon runner guides are fixed to the floor in such a way that they do not obstruct trolley movement through the door. The doorframes consist of reinforced plasterboard panels faced with the same laminate as the door and will be edged with an aluminium extrusion and with concealed fixings that are adjustable during installation to ensure a 100% hermetic seal is achieved.Microcontroller based door automation unit complete with motor, touchless hand sensor 2nos, foot switch 2nos, safety beam sensor.

WALL CEILING PANELS: Pre Fabricated Modular Wall, Ceiling & Corner Panels in 50 mm thick, PUF Panels, between Both Side Sheet PPGI ( Pre Painted Galvanized Steel) having PUF density of 40kg/m3 with proper supports.Wall panels will be fixes to the floor with channels & anchor fastner and interlocked with each other thru CAM LOCK system. Ceiling Panels will be supported with wall panels thru L type Flashing, CAM lock system and ceiling support system as required. (PPGI Sheet Make‐ Tata steel / Bhushan / Jindal / National). Panels including cutouts for Lights, Pendants, electrical switch‐sockets etc.
