Name: AHU & CONDENSING UNIT
Brand: MHS Make
Price: 385000 INR
Availability: InStock

Phone Number

08048034061

Please keep 0 before dialling the number.

Email Address info@modularoperationtheatre.co.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Plot No. 37, Udyog Kendra 1, Sector Ecotech 3, Greater Noida , Gauttam Budh Nagar U.P. 201306

Greater Noida, India, 201306

Description

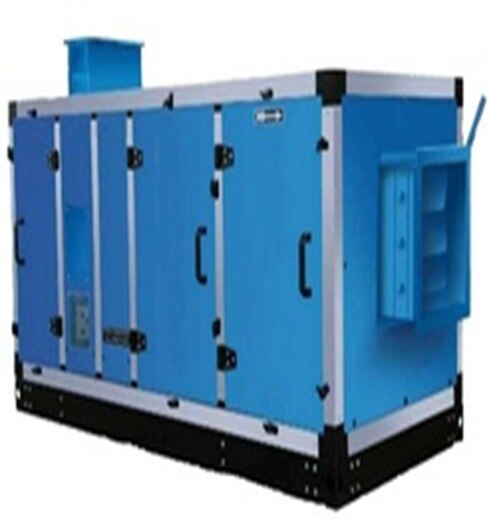

HU System & Condensing Unit with consisting FOLLOWING CHARACTERISITCS : AHU Unit: floor mounted air-cooled, double skinned AHU with following capacities of GI casing 0.6mm outer layers, o.6mm inside layer, with 25mm polyurethane insulation, with mixing chamber, 6 RD cooling coil, 0.1mm thickness aluminum fins, filters with 50mm aluminum/ washable pre and fine filter, belt drive motor of 50Hz, 3phase AC supply, drain connection etc. with complete as per these specification 3000 CFM with 80-20% Fresh Air, Static Pressure - 125. FAN SECTION – KRUGER/ NIKOTRA, MOTOR – ABB /CG Condensing Unit : micro Processor controlled Air Cooled Condensing Unit of 8.5TR) , hermetically sealed scroll compressor, refrigerant, complete with motor, condenser, fan of 3 phase connection, copper piping, insulation. (VOLTAS/Diakin/Carrier MAKE) 1. AHU- Air handling Unit 2. AC Unit 8.5TR (8.5 Ton X 1 Nos ) 3. Copper Piping with Insulation for AC Condencing Unit 4. Gas Charging of AC 5. Internal Wiring of AHU & AC
