Semi Eletro C Arm Compatible Operating Table - Features :- Radio Translucent top in four section for use of C- Arm image intensifier., Electronic controlled actuators concealed in eccentric chamber, All four controls from a hand unit(Remote), Electricity used 220vac and work on 24 V DC, Compatible for orthopedic attachment, Top frame , side bars, locks lever and all standard accessories ( SS Material) with metallic side clamp.

Fully Eletro C Arm Compatible Operating Table - Features :- Radio Translucent top in four section for use of C- Arm image intensifier., Electronic controlled actuators concealed in eccentric chamber, All four controls from a hand unit(Remote), Electricity used 220vac and work on 24 V DC, Compatible for orthopedic attachment, Top frame , side bars, locks lever and all standard accessories ( SS Material) with metallic side clamp. With Floor Mount Ortho Attachment.

Manual Sealed Hinged Door size (Width 1500 mm X Height 2100 mm ) Double leaf in HPL on both side & PUF / Honeycomb material will be filled between two sheets as per site opening) complete with double toughned glass vision window of 300mm x 300mm, SS door hinges SS Handle, Door Closer, Door lock , sealing gaskett & Automatic drop seal in bottom of door with required accessories. Door frame will be Aluminum duly Anodizing with sealing gasket. 40 ± 2 Puff Density with View Panel and Below mentioned Accessories, Make - MHS ( Modular Healthcare System)

Manual Sealed Hinged Door Double leaf in SS304 OR High Pressure Laminate on both side & PUF/Honeycomb material will be filled between two sheets framed in aluminium extruded profile, Door size (as per site opening) complete with double toughned glass vision window of 300mm x 300mm, SS door hinges make Dorset/Dorma, SS Handle, Door Closer make Dorset/Dorma, Door lock make Dorset/Dorma, sealing gaskett & Automatic drop seal in bottom of door with required accessories. Door frame will be aluminium extruded profile duly anodized with sealing gasket.1200 mm x 2100 mm

Modular IVF Lab is a necessary product in OT and nursing rooms. This list board works as an instructor to guide surgeons step by step for the entire procedure to avoid mistakes. These boards are known for improving the operation performance and reducing the chances of mistakes during a major operation in a shorter time period. There are several operating list board manufacturers are available in the market, but the modular healthcare system is the best operating list board manufacturer and suppliers. Modular Healthcare Systems present operating list boards, flushed to the wall of an operating room. The Operating list board, we provide are made of ceramic and also contains great magnetic properties. We recommend one list board for each OT room. The size of the OT list board depends on the size of OT room, its furniture and the requirement of our client. We are open for the customizing option to satisfy our client. For us, customer satisfaction and the health of patients come first. For customized operating list board, you just need to tell your requirements and we will provide you the best solutions. These boards have been in use for the surgeon's practice for improving their skills and increasing the perfection in their practice. Our operating list boards are highly durable and made with strong material in hygienic condition. We use only the top quality raw material and advanced manufacturing techniques to provide you complete value for your money.

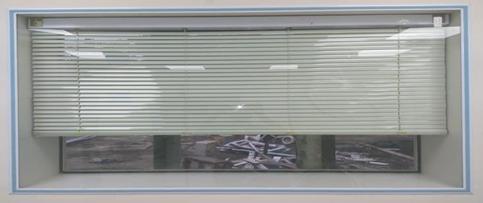

View Window: - Double insulated fixed glazing with not less than 5mm thick toughened glass on both the sides. Window frame is powdered coated aluminium of approved shape flush mounted with wall panelling. Motorized horizontal venetian blinds of powder coated aluminium strips of vista level including necessary accessories. The venetian blinds is motorized with wall mounted switch [ Size of Window - 900mm(H) x 900mm(W)].

HU System & Condensing Unit with consisting FOLLOWING CHARACTERISITCS : AHU Unit: floor mounted air-cooled, double skinned AHU with following capacities of GI casing 0.6mm outer layers, o.6mm inside layer, with 25mm polyurethane insulation, with mixing chamber, 6 RD cooling coil, 0.1mm thickness aluminum fins, filters with 50mm aluminum/ washable pre and fine filter, belt drive motor of 50Hz, 3phase AC supply, drain connection etc. with complete as per these specification 3000 CFM with 80-20% Fresh Air, Static Pressure - 125. FAN SECTION – KRUGER/ NIKOTRA, MOTOR – ABB /CG Condensing Unit : micro Processor controlled Air Cooled Condensing Unit of 8.5TR) , hermetically sealed scroll compressor, refrigerant, complete with motor, condenser, fan of 3 phase connection, copper piping, insulation. (VOLTAS/Diakin/Carrier MAKE) 1. AHU- Air handling Unit 2. AC Unit 8.5TR (8.5 Ton X 1 Nos ) 3. Copper Piping with Insulation for AC Condencing Unit 4. Gas Charging of AC 5. Internal Wiring of AHU & AC

Aluminium Ducting ( 22 gauge ) with curves & bends where indicated for easy flow of air tight by applying silicon sealant after fabrication. Hangers will be provided to ducts & will be suspended be means of G.I. coated rod & these will not be more than 2.5 mtrs apart. Thermal insulation with 9mm XPE with aluminium foil for supply & return air ducts. Joints will be lapped with Nitrile tape for better insulation. (Laminar to AHU & Return air in all four corners) AHU to be placed near OT, not more than 2 meter. No insulation is allowed in side the duct.

SS Pressure Relief Dampers made out of 1.5mm thick SS 304 having multi SS304 graded stainless steel blades with Balancing weight made out of Stainless steel & brass for maintaining the positive pressure inside the operation theatre complete with aluminium powder coated grill outside the OT . (size: 300mm x350mm)
