Manual Sealed Hinged Door size (Width 1500 mm X Height 2100 mm ) Double leaf in HPL on both side & PUF / Honeycomb material will be filled between two sheets as per site opening) complete with double toughned glass vision window of 300mm x 300mm, SS door hinges SS Handle, Door Closer, Door lock , sealing gaskett & Automatic drop seal in bottom of door with required accessories. Door frame will be Aluminum duly Anodizing with sealing gasket. 40 ± 2 Puff Density with View Panel and Below mentioned Accessories, Make - MHS ( Modular Healthcare System)

Manual Sealed Hinged Door Double leaf in SS304 OR High Pressure Laminate on both side & PUF/Honeycomb material will be filled between two sheets framed in aluminium extruded profile, Door size (as per site opening) complete with double toughned glass vision window of 300mm x 300mm, SS door hinges make Dorset/Dorma, SS Handle, Door Closer make Dorset/Dorma, Door lock make Dorset/Dorma, sealing gaskett & Automatic drop seal in bottom of door with required accessories. Door frame will be aluminium extruded profile duly anodized with sealing gasket.1200 mm x 2100 mm

Supply and installation of Touch type 6 Tile based OT control panel mounted flush in the theatre wall, comprising of the following: 1. Digital Standard Clock, 2.Digital Elapsed Clock 3.Temp and Humidity Indicators, 4.Lighting controls 5. Medical Gas Alarm 6. Hands free Telephone with memory 7. Room Pressure Display

Standard - Automatic Surgical Scrub Sink 2 - Bay Made out of 1.5 mm thick SS 304 stainless Steel seamless welding, polished to stain finish complete with thermostatic mixing valve for Hot & Cold water, Strainers, Jaquar Spouts, Soap Stand, Touchless Senser & Foot operated Spout bypass system etc. The sink body is constructed of made of SS #304, ( 1500mm L x 1365mm H x 565mm D)

Standard - Automatic Surgical Scrub Sink 1 - Bay Made out of 16 Gauge thick SS 304 stainless Steel seamless welding, polished to stain finish complete with thermostatic mixing valve for Hot & Cold water, Strainers, Jaquar Spouts, Soap Stand, Touchless Senser & Foot operated Spout bypass system etc.The sink body is constructed of made of SS #304, ( 900mm L x 1365mm H x 565mm D)

View Window: - Double insulated fixed glazing with not less than 5mm thick toughened glass on both the sides. Window frame is powdered coated aluminium of approved shape flush mounted with wall panelling. Motorized horizontal venetian blinds of powder coated aluminium strips of vista level including necessary accessories. The venetian blinds is motorized with wall mounted switch [ Size of Window - 900mm(H) x 900mm(W)].

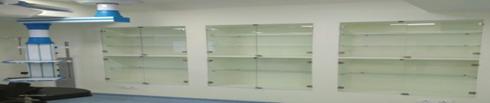

GI Storage Unit of size 800x1900x350 mm has made with wall paneling. Removable toughened glass shelves 4 Nos of thickness 5 mm will be provided with the storage units. 1 No of storage unit in each OT.

Hatch box for modular OT in stainless steel SS304, SS Handles, SS Hinges, View window, Door close/open indication, Electromagnetic door interlocking system based on Microcontroller electronic system for disposal of dirty linen/waste to non-sterile store.(Size 600mm x 600mm x 600mm)

HU System & Condensing Unit with consisting FOLLOWING CHARACTERISITCS : AHU Unit: floor mounted air-cooled, double skinned AHU with following capacities of GI casing 0.6mm outer layers, o.6mm inside layer, with 25mm polyurethane insulation, with mixing chamber, 6 RD cooling coil, 0.1mm thickness aluminum fins, filters with 50mm aluminum/ washable pre and fine filter, belt drive motor of 50Hz, 3phase AC supply, drain connection etc. with complete as per these specification 3000 CFM with 80-20% Fresh Air, Static Pressure - 125. FAN SECTION – KRUGER/ NIKOTRA, MOTOR – ABB /CG Condensing Unit : micro Processor controlled Air Cooled Condensing Unit of 8.5TR) , hermetically sealed scroll compressor, refrigerant, complete with motor, condenser, fan of 3 phase connection, copper piping, insulation. (VOLTAS/Diakin/Carrier MAKE) 1. AHU- Air handling Unit 2. AC Unit 8.5TR (8.5 Ton X 1 Nos ) 3. Copper Piping with Insulation for AC Condencing Unit 4. Gas Charging of AC 5. Internal Wiring of AHU & AC

Aluminium Ducting ( 22 gauge ) with curves & bends where indicated for easy flow of air tight by applying silicon sealant after fabrication. Hangers will be provided to ducts & will be suspended be means of G.I. coated rod & these will not be more than 2.5 mtrs apart. Thermal insulation with 9mm XPE with aluminium foil for supply & return air ducts. Joints will be lapped with Nitrile tape for better insulation. (Laminar to AHU & Return air in all four corners) AHU to be placed near OT, not more than 2 meter. No insulation is allowed in side the duct.

SS Pressure Relief Dampers made out of 1.5mm thick SS 304 having multi SS304 graded stainless steel blades with Balancing weight made out of Stainless steel & brass for maintaining the positive pressure inside the operation theatre complete with aluminium powder coated grill outside the OT . (size: 300mm x350mm)

Manual operated Hermettically sealed Sliding door with High Pressure Laminate on both side, Door size (1500mm wide 2100mm height) complete with double toughned glass vision window of 300mm x 300mm and smooth effortless sliding door runs on nylon wheel within an aluminum extrusion high quality rail complete with required accessories. The door track is constructed from an aluminium extrusion, fixed firmly to the wall. Nylon runner guides are fixed to the floor in such a way that they do not obstruct trolley movement through the door. The doorframes consist of reinforced plasterboard panels faced with the same laminate as the door and will be edged with an aluminium extrusion and with concealed fixings that are adjustable during installation to ensure a 100% hermetic seal is achieved.
