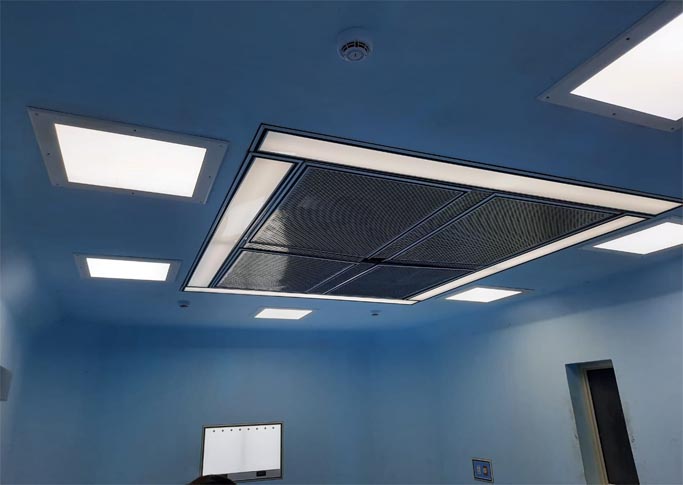

Supply and installation of Aluminum Plenum LAMINAR FLOWPlanair
Ceiling mounted mounted system with unidirectional airflow
, Plenum unit will be made of Aluminum sheet to insure rust free
surface, Holding structure will be in galvanized steel sheet duly
powder coated & Top plenum are conforming to DIN 4799
standards for the air distribution system complete with 6 Nos
HEPA Filters (efficiency 99.97% down to 0.3 m ). (Plenum size
2400 mm x 2400 mm). Diffuser are made out of Aluminum
perforation for laminar of filtered air. Diffusers will be fixed thru
Aluminium extruded frame, sealing gasket and stainless steel
screw which will not be exposed outside, It will be covered with
sealing gaskett.
